New PDF Comment 6:
(See Example PDF and Example PDFill Project File )
A pop-up annotation displays text in a pop-up window.
Note: Adobe Reader will use its default font for PDF Commenting Text. So, the text style inside PDFill will be different than that inside Adobe Reader.
To exactly control the text style (font encode, font name, font size, font style and rotation) in the PDF output , please use the Single Line Text or Multiple Line Text. You can convert the Commenting Text into the Multiple Line Text from Edit Menu so that the text inside PDFill will match the text inside the PDF output.
1. Steps on how to create a Popup Comment to your PDF file:
or click the Popup Tool button in the Comment Toolbar

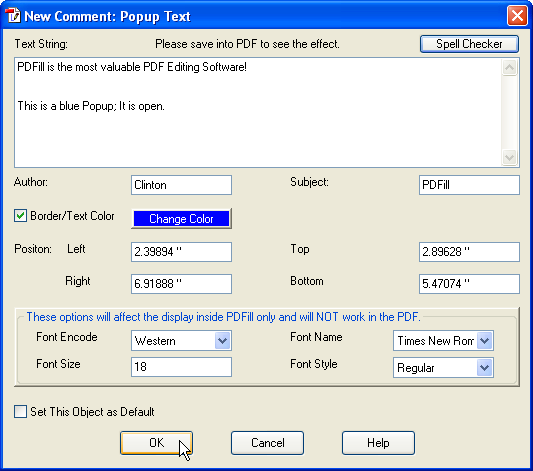

2. Access the properties:
3. Set the properties:
Here is the list of the properties.
Text String the content text string to be displayed for the annotation. Spell Checker Verify the spelling of words in the text string box. Author The author of the annotation. Subject Text representing a short description of the subject being addressed by the annotation.
The color for the border and text.
Position (Left, Right, Top, Bottom)
The X and Y coordinate of the box to define the position of the field.
Click here to see the listed links to international graphical representations, and textual listings, of each of the Windows codepages that PDFill supports.
Some font is empty for the selected Font Encode. You must play with several fonts to see if it works inside PDFill. Only affect the display inside PDFill.
Font Size. Only affect the display inside PDFill.
Font Regular, Bold, Italic and Bold Italic. Only affect the display inside PDFill.
Set this field as default
If set, the new object will have the same properties as this one.
