PDFill PDF Barcode Generator: 6. Code 39 and Code 39 Extended Barcode
(See Example PDF and Example PDFill Project File )
Code 39 specification defines 43 characters, consisting of uppercase letters (A through Z), numeric digits (0 through 9) and a number of special characters (-, ., $, /, +, %, and space). An additional character (denoted '*') is used for both start and stop delimiters. Each character is composed of nine elements: five bars and four spaces. Three of the nine elements in each character are wide (binary value 1), and six elements are narrow (binary value 0). The width ratio between narrow and wide is not critical, and may be chosen between 1:2 and 1:3.
Code 39 Extended is Full ASCII Code 39. In Full ASCII Code 39 Symbols 0-9, A-Z, ".", "-" and space are the same as their representations in Code 39. Lower case letters, additional punctuation characters and control characters are represented by sequences of two characters of Code 39.
1. Steps on how to insert a Code 39 into PDF Page:
2. Access the properties:

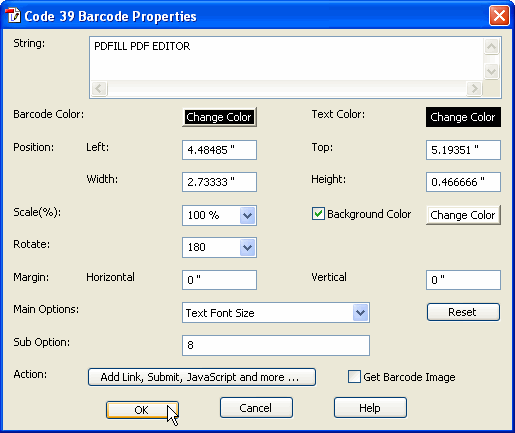

3. Set the properties:
Here is the list of the properties.
String The text to be encoded. Only Digital Number 0-9 can be used. Barcode Color The color of the bars Text Color The color of the text Position (Left, Right, Width, Height) The X and Y coordinate of the box to define the position and size of the barcode Scale The ratio of the displayed barcode to the actual barcode Background Color The color of the background Rotate The rotation degree from 3 clock relative to the barcode center Margin
